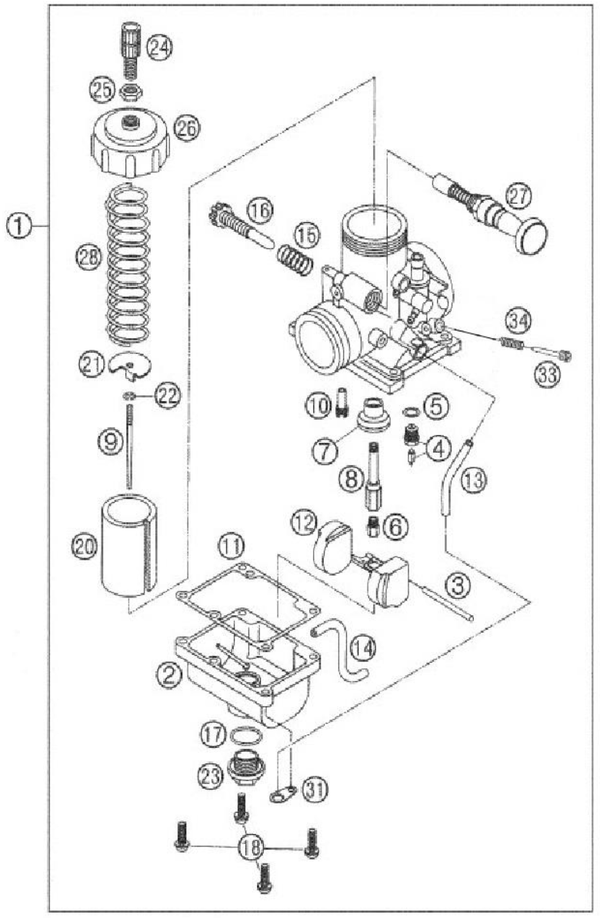

Carburetor, 2024 Cobra CX65

Carburetor, 2024 Cobra CX65

Part Price Qty
1. CARBURETOR 26MM MIKUNI $210.18 RCR60026
2. FLOAT BOWL CHAMBER $35.88 RCC60017
4. NEEDLE VALVE & SEAT ASSY $37.82 RCMU0271
9. NEEDLE JET STOCK 5L14 $14.33 RCEX0026
11. GASKET - FLOAT BOWL $5.43 RCC60013
17. O'RING BOWL PLUG $2.54 ZCDCOR01
18. FLOAT BOWL SCREW $3.32 RCEX0012
20. SLIDE $43.26 RCC60025
22. CLIP - NEEDLE $2.20 RCMU0277
27. CHOKE ASSY $27.80 RCC60026
30. PILOT JET $6.54 RCEX0030
33. AIR ADJUSTING SCREW $8.77 RCEX0013
34. SPRING - AIR ADJUST SCREW $4.43 RCEX0014
35. PILOT JET $6.54 RCEX0035
37.5. PILOT JET $6.54 RCEX0037
40. PILOT JET $6.54 RCEX0040
42.5. PILOT JET $6.54 RCEX0042
45. PILOT JET $6.54 RCEX0045
47.5. PILOT JET $6.54 RCEX0047
50. PILOT JET $6.54 RCEX0050
52.5. PILOT JET $6.54 RCEX0052
55. PILOT JET $6.54 RCEX0055
60. PILOT JET $6.54 RCEX0060
190. MAIN JET $6.66 RCMU0190
195. MAIN JET $6.66 RCMU0195
200. MAIN JET $6.66 RCMU0200
205. MAIN JET $6.66 RCMU0205
210. MAIN JET $6.66 RCMU0210
215. MAIN JET $6.66 RCMU0215
220. MAIN JET $6.66 RCMU0220
230. MAIN JET $6.66 RCMU0230
240. MAIN JET $6.66 RCMU0240
250. MAIN JET $6.66 RCMU1250
260. MAIN JET $6.66 RCMU1260
270. MAIN JET $6.66 RCMU1270
280. MAIN JET $6.66 RCMU1280
290. MAIN JET $6.66 RCMU1290
300. MAIN JET $6.66 RCMU1300
310. MAIN JET $6.66 RCMU1310
NOT SHOWN. CABLE ADJUSTER CAP (RUBBER) $2.20 RCMU0415
NOT SHOWN. AIR SCREW O-RING $2.32 RCC60021
NOT SHOWN. AIR SCREW WASHER $2.20 RCC60020
